PRODUCT MODEL：
1. Product Introduction
L The touch all-in-one machine, which adopts the advanced multipoint touch interaction technology at home and abroad, is a multi-functional human-computer interaction terminal using screen touch operation, integrating the functions of interactive electronic whiteboard, audio, computer, Internet, multimedia playback, etc.
Widely used in fields such as education and teaching, corporate conferences, commercial exhibitions, and lobby queries. For example: network multimedia teaching system, educational training recording system, enterprise product display system, automobile 4S store product experience system, real estate sales query system, airport station touch query system, medical institution medical inquiry system, telecommunications department business number selection system, securities and stock trading system, etc.
2. Product features
L adopts ultra clear 1920 * 1080 resolution LCD panel, 178 ° all-round viewing angle, high color gamut, with special performance such as 3D digital noise reduction, dynamic contrast adjustment, intelligent elimination of residual images, etc., for a more perfect restoration.
Industrial grade power system, self regulating heat dissipation, meets 24-hour uninterrupted use, LED twin crystal backlight source, higher brightness, lower power consumption.
Explosion proof and anti glare tempered glass effectively suppresses interference from external environmental light, resulting in soft and non glaring images.
Adopting the G G projection capacitive touch solution, it has high stability, no drift due to changes in time and environment, high transparency, sensitive response, and no delay.
Using industry stable and mature touch solutions, supporting up to 10 touch points. Highly stable, highly adaptable, not affected by environmental factors such as current, voltage, static electricity, etc., suitable for certain harsh environmental conditions.
Real time video and audio decoding; Real time video and audio playback; Compatible with multiple image, animation, and audio encodings, supports centralized control through TCP/IP networks, and can be distributed across the country based on the Internet, achieving super information dissemination through wide area networks and more efficient operational efficiency.
Compatible with Android and computer dual system touch operation, it can connect to the internet, play multimedia files, PPT presentations and other interactive teaching without the need for a computer. You can install application software according to your own needs.
Integrated design: The product design is simple and atmospheric, more aesthetically pleasing, cost-effective, supports wall mounted and horizontal installation, easy to install and maintain, industrial grade components, better heat dissipation, low power consumption, low radiation, metal front frame design, fine workmanship, and humanized detail design. Safe and reliable, energy-saving and environmentally friendly, without sharp edges.
The workshop fully adopts advanced IOS9001 solution management, and can customize the shell shape, configuration, body color, and add logo according to customer requirements.
Featured Installation
Provide multiple installation methods to meet the installation needs of various industries. The basic model has wall mounted, sloping floor standing (with floor standing K-type/S-type base), and floor standing installation.
3. Product Features
| function |
describe |
| Display interface |
Windows interface is graphical, multi-user, and multitasking; |
| Material support |
Images, videos, text, web pages, weather, time, news, RSS text, documents, etc |
| interactive programme |
You can set whether a certain program area will trigger the next jump action after being clicked or touched. You can choose to turn off interaction, swipe, previous program, exit interaction, or connect sub programs. |
| Network and Communication Management |
Equipped with online resource management functions, shared resource management allows user applications to access resources, ensuring the security and consistency of resources. Sites can transfer data and communicate with each other, and complete information transmission between computers through communication software in accordance with communication protocols. Implement functions including fault management, safety management, performance management, accounting, and configuration management. |
| Touch operation |
Both Windows and Android interfaces support full-featured touch operations, and both systems support 10 point touch and 10 point writing; |
| screenshot |
During use, it supports screen capture function across all channels to record operation information |
| Screen recording |
Support screen recording function in all channels, which can record the full screen display image and save it after completion; |
| Expansion device |
Support for expanding USB devices such as cameras, omnidirectional microphones, scanners, etc., for example: expanding cameras and omnidirectional microphones to achieve video conferencing functionality; |
| VIP Reception |
When important clients come to negotiate projects, the VIP reception function can be used, with multiple theme options to meet the needs of different industries; |
| STATISTICS |
It can perform log statistics on all user operations, including all programs and the number of times scenes, pictures, and videos were played during a certain period of time, as well as the online duration of the terminal; Load distribution supports a multi server distribution management mechanism for future system expansion; |
| storage management |
Storage allocation, storage sharing, storage expansion |
| equipment management |
Provide control and processing of peripheral devices, management of buffers, allocation and driving of peripheral devices, and implementation of virtual devices. |
4. Technical parameters
| type |
Parameters/Description |
|
| display |
Display Size |
32” |
| DISPLAY AREA |
698.4(H)X392.9(V) MM |
|
| display scale |
16:9 |
|
| Backlight |
ELED |
|
| resolution |
1920*1080pixels |
|
| brightness |
300cd/㎡ |
|
| contrast ratio |
1000:1 |
|
| colour |
16.7M |
|
| viewing angle |
89°/89°/89°/89°（min）（CR≥10） |
|
| response time |
8ms |
|
| configuration |
CPU |
Intel ® Core ? I3 (3rd and 4th generation) |
| GPU |
Intel integrated graphics |
|
| RAM |
DDR-3 4GB |
|
| ROM |
128G SSD |
|
| operating system |
WIN7/WIN8/WIN10/Android (optional) |
|
| decode |
resolution |
MAX 1080P |
| Video encapsulation |
RM/RMVB, MKV, MP4, TS, FLV, AVI, VOB, MOV, WMV, etc |
|
| Video Coding |
MPEG-1/2/4, H.263, H.264, WMV9, RV8/9/10, Divx-3/4/5, etc |
|
| audio coding |
MP3, WMA, WAV, EAAC, APE, FLAC, BSAC, OGG, etc |
|
| Image encoding |
JPG, PNG, BMP, etc |
|
| Touch IC |
Touch Control Solution |
G G |
| Touch point count |
ten o'clock |
|
| response speed |
＜6MS |
|
| Minimum touch object |
＞2MM |
|
| Touch accuracy |
±2MM |
|
| Gravity free touch control |
support |
|
| Anti occlusion touch control |
support |
|
| Touch frequency |
More than 50000000 times |
|
| Touching objects |
Electromagnetic pens, fingers, and other conductive objects |
|
| Touch resolution |
32768 x 32768 |
|
| Touch screen surface hardness |
Mohs Level 7 |
|
| transmittance |
White glass ≥ 95%, anti glare glass ≥ 80% |
|
| Glass thickness |
4mm tempered glass |
|
| Anti glare performance |
Particle size<0.2um, reflectivity<2% |
|
| Touchscreen power supply system |
USB |
|
| sound |
built-in |
Built in high fidelity 8 Ω 5W speakers * 2 |
| network |
Ethernet |
100/1000Mbps adaptive |
| WIFI |
Wireless protocol 802.11b/g/n |
|
| 4G (optional) |
Support the three network standards of China Mobile, China Unicom, and China Telecom |
|
| interface |
audio |
Microphone 1 * MIC IN, headphone jack 1 * AUDIO OUT |
| USB |
2*USB\2*USB3.0 |
|
| HDMI |
1*HDMI1.4 OUT |
|
| VGA |
1*DB15 OUT |
|
| network |
1*RJ45 |
|
| power supply |
working voltage |
AC110V/220V 50/60Hz |
| Maximum power consumption |
100W |
|
| standby power |
0.5W |
|
| Usage environment |
operation temperature |
0~50° |
| storage temperature |
-10~60° |
|
| relative humidity |
10~80RH without condensation |
|
| Note: Wall mount bracket (optional mobile bracket), computer memory can be upgraded to 4GB or 8GB; Computer CPU can be optionally upgraded to I5 or I7 |
||
5. Product size (unit: mm)
PE: The product size is for reference only, and the actual shipping structure size diagram shall prevail
6. Product Display
7. Application scenarios
8. Instructions for use
To ensure the normal use of this product and prevent accidents such as electric shock or fire, please read and understand all usage requirements and operating procedures before using this product. Strictly adhere to the following requirements:
The power required for this product is generated by an AC power source, please pay attention to the input voltage standard when connecting.
The AC power socket should be well grounded and able to withstand sufficient product current requirements.
This product is designed for indoor use and cannot be used in outdoor environments
This product itself does not have waterproof performance, please do not directly put it into water or place it in areas that can be directly touched by rainwater
Be careful to avoid excessive moisture and dust to prevent circuit corrosion from causing malfunctions and affecting the lifespan of this product.
All output and input sockets should be operated in the event of a power outage
This product meets safety standards when used indoors at room temperature, but should be avoided from direct sunlight or other heat sources to prevent excessive temperature from affecting product stability.
If this product is not used for a long time, please unplug the power.
9. Random attachments and others
| type |
Description/Explanation |
| attachment |
Power cord 1.5M * 1 |
| Remote control * 1 |
|
| Warranty card * 1 |
|
| Certificate of conformity * 1 |
|
| WIFI antenna * 1 |
|

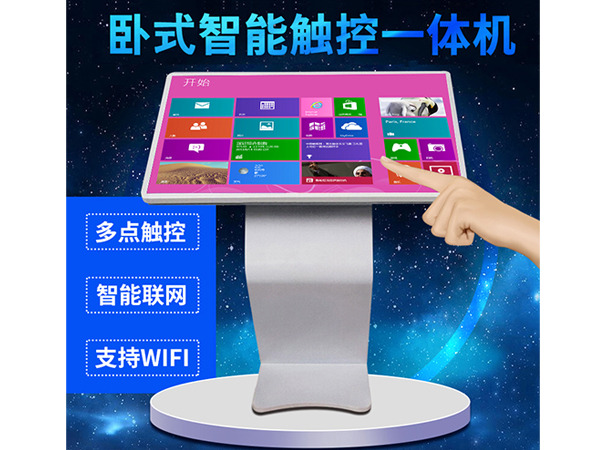

| K-type base * 1 |
|
| Installation method |
K-type base fixation |
